Dimensions are commitments, not labels
A dimension is the most binding mark on a drawing. A line can be redrawn, a note can be clarified, but a dimension is the number a framer measures to, the figure a fabricator cuts to, and the value a surveyor stakes out. When we dimension a drawing at Cadeonn, we are not annotating a picture — we are writing the instructions a crew will follow when we are nowhere near the site. That mindset changes how every extension line and witness mark gets placed.
The goal is a set where there is exactly one way to read each measurement, and where nothing important is left to be scaled off the page. Drawings should never be measured with a ruler; they should be read. Good dimensioning makes that possible.
Running, baseline, and ordinate

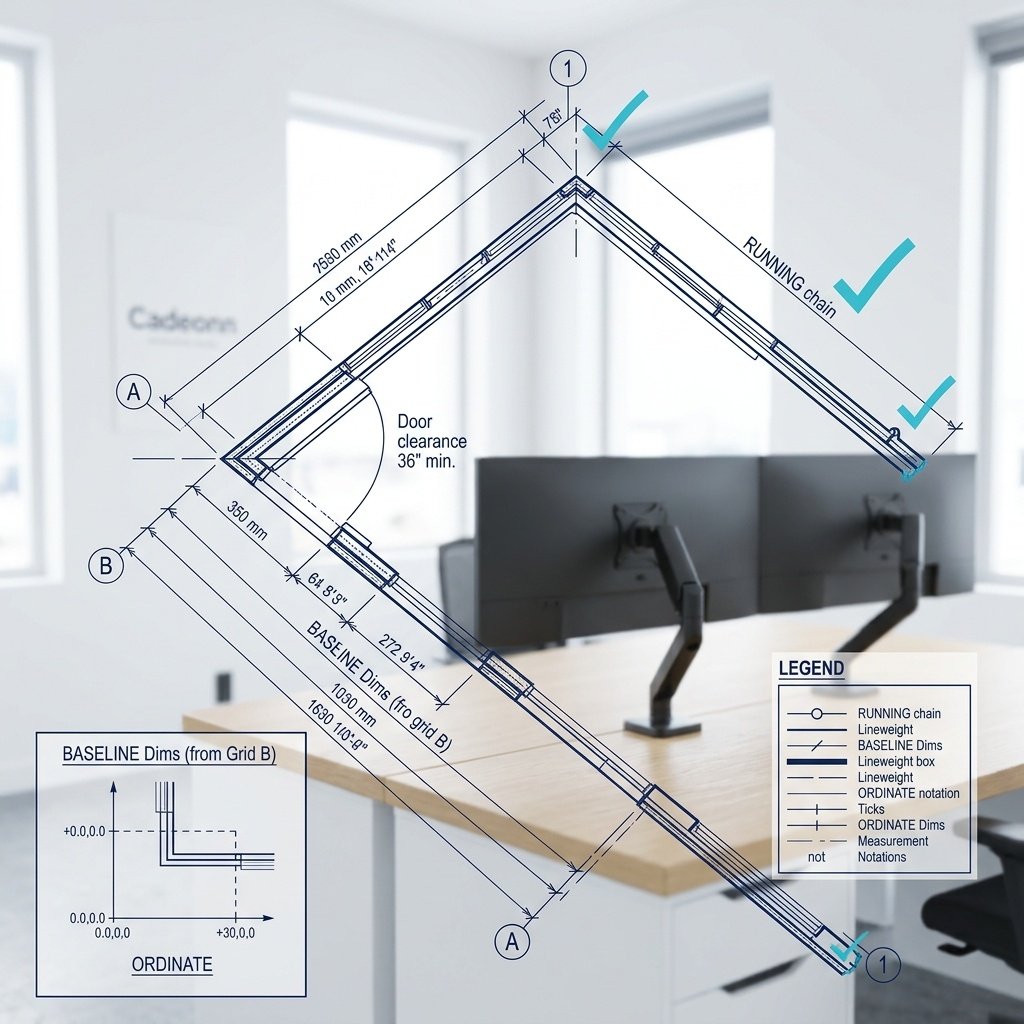

There are three workhorse strategies, and choosing the right one is half the battle. Running (chained) dimensions string segment to segment and read naturally along a wall, but small errors accumulate down the chain. Baseline dimensions measure every point from a single datum, so each value is independent and accumulated error disappears — ideal for grids and structural layouts. Ordinate dimensions go further, giving X and Y coordinates from one origin, which keeps congested plans clean and is the language of fabrication and CNC work.
If a builder can derive two different numbers for the same wall, you have not dimensioned the drawing — you have started an argument.
These conventions are formalised in standards such as the dimensioning and tolerancing practices maintained by ASME, which give the profession a shared grammar for how numbers, arrows, and tolerances behave. We apply them throughout our construction documentation services.
Chains that actually close
The cardinal rule is that chains must close: the sum of the parts must equal the stated whole. A wall dimensioned in three segments must add up exactly to its overall figure, every time. When it does not, the crew gets two conflicting truths and is forced to guess — and guesses on a structural grid get expensive fast. We verify closure on every sheet, often using the model itself to generate dimensions so the math is true by construction rather than by hope. Tools like those documented by Autodesk make associative, model-driven dimensions practical at scale.
Tolerances and what they really mean
Not every dimension deserves the same precision, and pretending otherwise is its own kind of error. A tolerance tells the builder how much deviation is acceptable, and choosing it well is a design decision:
- Tighten tolerances only where fit and function demand it — equipment pads, structural connections, cladding interfaces.
- Loosen them where field conditions naturally vary, like rough earthwork or existing construction.
- State tolerances explicitly rather than implying them, so nobody invents their own.
- Keep units and rounding consistent across the whole set to avoid silent drift.
For more on production discipline, see our companion pieces on layer naming conventions and the broader Insights library.
Frequently asked questions
What is the difference between running and baseline dimensions?
Running (chain) dimensions measure each segment from the previous point, while baseline dimensions measure every point from one common origin. Baseline avoids accumulated error because each value is independent of the others.
Why must a dimension chain close?
A chain closes when its individual segments add up exactly to the overall dimension. If they do not, the builder gets two conflicting numbers for the same wall, which forces a guess on site and invites costly error.
