Why layer names decide a project's fate
Every large drawing set is really a database in disguise, and layers are its index. When a project is small, almost any naming habit survives — you remember what "wall2" and "newlayer1" mean because you drew them yesterday. But scale that file across a dozen consultants, six months, and three rounds of revisions, and undocumented layers become landmines. Someone freezes the wrong layer before a plot, a contractor reads a demolition wall as new construction, and suddenly a naming shortcut has cost real money on site.
At Cadeonn, we treat a layer name as a contract between everyone who will ever open the file. A name should tell you the discipline that owns it, what it represents, and how it should plot — without a phone call. That clarity is what lets a set grow without collapsing under its own weight.
Discipline prefixes: the backbone of order

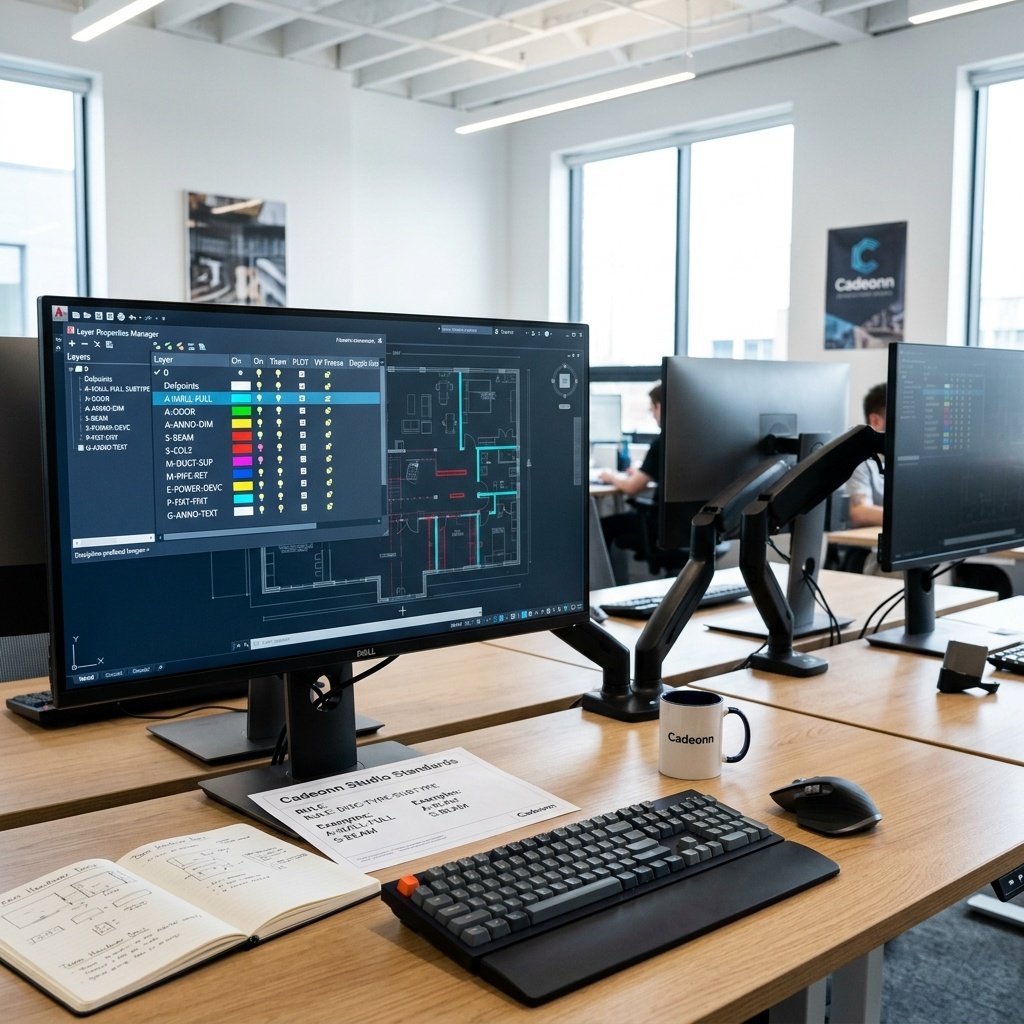

The single most valuable convention is the discipline prefix. A layer named A-WALL-FULL announces itself immediately: architectural discipline, wall element, full-height. Structural becomes S-, mechanical M-, electrical E-, plumbing P-, and civil C-. With one glance, anyone can isolate or freeze an entire discipline, and clash reviews become trivial because the data is already sorted by ownership.
A layer name is a promise to the next person who opens the file — keep it, and the whole set stays coordinated.
This structure is not something we invented. It follows the field-based logic codified by the National CAD Standard, which separates discipline, major group, minor group, and status into predictable positions. You can see how we apply it inside our broader architectural drafting services.
Naming for clean team handovers
The real test of a layer scheme is the handover. When a drafter goes on leave or a project transfers to a new lead, a disciplined naming system means the incoming person reads the file like a book instead of an archaeological dig. We standardise our prefixes and status codes in the office template so no two people invent competing systems. Professional bodies like the American Institute of Architects have long championed this kind of documentation consistency as a mark of professional practice. It pairs naturally with disciplined studio CAD standards.
What to avoid at all costs
- Ad-hoc names like "layer1", "temp", or your own initials — they mean nothing to anyone else.
- Encoding plot weight or colour in the name when the layer's properties already carry it.
- Mixing demolition, existing, and new elements on a single layer with no status field.
- Spaces and special characters that break scripts, sheet sets, and exports.
- Letting a project drift from the template "just this once" — exceptions multiply.
For teams formalising these rules, our free downloads and the deeper guide to line weights and plot styles are good next stops.
Frequently asked questions
What is a discipline prefix in CAD layer naming?
A discipline prefix is the first field in a structured layer name that identifies the responsible discipline — A for architectural, S for structural, M for mechanical, and so on — so anyone opening the file can instantly see who owns each layer.
Why follow the National CAD Standard?
The National CAD Standard gives every collaborator a shared, predictable layer language, so consultants, contractors, and reviewers read your set the same way you do — reducing handover friction and rework on large coordinated projects.
