Why daylight is a design decision
Daylight is the cheapest, most flattering, and most psychologically valuable material an architect can work with — and the only one that arrives for free. Spaces filled with good natural light feel larger, healthier, and more humane, and they cut the energy spent on artificial lighting and, when handled well, on cooling. But daylight is also unforgiving. Too much in the wrong place produces glare and overheating; too little leaves rooms gloomy and lights burning at noon.
Getting it right is not luck. It is the product of deliberate choices about how a building faces the sun and how its openings are sized, placed, and shaded. Those choices belong on the drawings from the earliest stages, which is why daylighting is woven through our drafting and design documentation rather than treated as a late-stage add-on.
Solar orientation
Orientation is the first lever, and it costs nothing to pull well. In the northern hemisphere, a south-facing facade receives high summer sun that is easy to shade and low winter sun that is welcome for warmth and brightness. East and west exposures catch harsh, low-angle light that is difficult to control and a frequent source of glare. North light, by contrast, is soft, diffuse, and remarkably consistent — prized by artists and well suited to workspaces.
By aligning the most-used rooms and the largest glazing with favourable exposures, we capture the benefits of daylight while sidestepping its penalties. These early massing moves connect directly to the work described in moving from concept sketch to schematic design.
Daylight rewards intention. Where the sun falls is decided long before the windows are drawn — it is decided when the building turns to face the sky.
Fenestration, glazing ratios, and shading

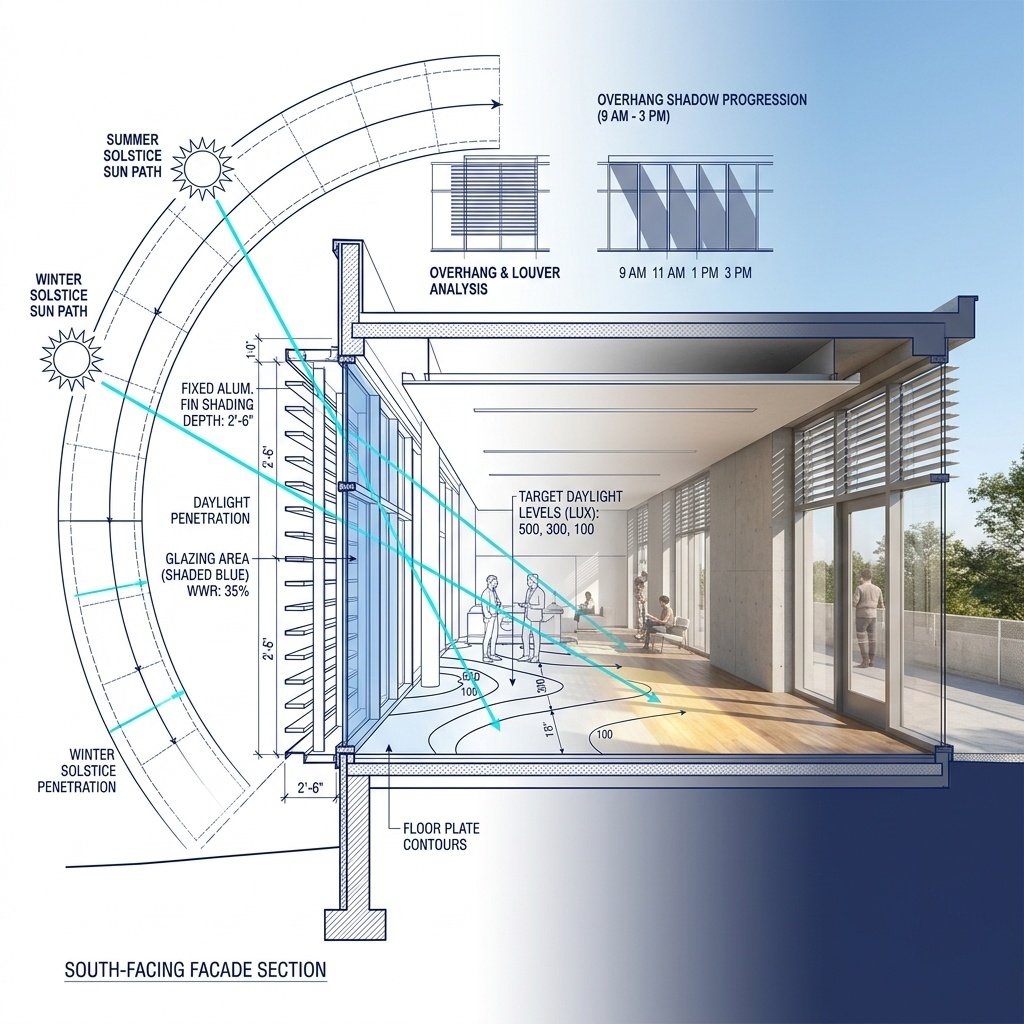

Fenestration — the art of placing windows — turns orientation into experience. The window-to-wall ratio governs how much light and heat enter; higher is not always better, since oversized glazing can flood a room with glare and thermal load. Head height matters more than raw area, because light from a high window reaches deeper into a plan than light from a wide one. Shading then tunes the result, with horizontal overhangs cutting high summer sun while admitting low winter rays.
For a deeper technical grounding, the Whole Building Design Guide on daylighting is an authoritative reference, and rating systems such as the U.S. Green Building Council's LEED reward daylight quality as part of overall building performance.
Principles for daylighting success
- Orient primary spaces and major glazing toward controllable exposures.
- Favour higher window heads over wider openings for deeper light penetration.
- Size glazing ratios to balance daylight against heat gain and glare.
- Shade each facade for its specific sun path, not with one generic detail.
- Use light shelves and interior finishes to bounce light deeper into plans.
Followed together, these principles produce buildings that feel naturally bright and run efficiently. Explore related thinking in our Insights library for how performance and documentation reinforce one another.
Frequently asked questions
What is the daylight factor?
The daylight factor is the ratio of indoor daylight illuminance at a point to the simultaneous outdoor illuminance under an overcast sky, expressed as a percentage. It is a simple metric for judging how well-lit a space is by natural light.
How does building orientation affect daylighting?
Orientation determines which facades receive sun and when. South-facing glazing (in the northern hemisphere) gathers controllable winter light, east and west faces bring harsh low-angle glare, and north light is soft and even — so orientation drives where glazing and shading should go.
